Fusion energy promises a future of clean, nearly limitless electricity, but making it work requires more than creating extremely hot plasmas and powerful magnetic fields.
Scientists also need an efficient way to recover and recycle the special hydrogen fuels used inside fusion reactors.
Now, researchers have developed a promising new method for separating these fuels using a silver-containing material called a zeolite.
The discovery could help future fusion power plants recover valuable fuel more efficiently and reduce waste. The study was published in Nature Communications.
Fusion reactors mainly use two forms of hydrogen, called deuterium and tritium. When these two isotopes fuse together, they release enormous amounts of energy.
However, not all of the fuel is used during the reaction. Some deuterium and tritium remain, along with ordinary hydrogen, known as protium, which can enter the reactor through side reactions or from gases released by reactor materials.
To reuse the fuel, scientists must separate these three forms of hydrogen. That is much harder than it sounds because, chemically, they behave almost exactly the same.
The only real difference is the number of neutrons inside their atomic nuclei, making traditional separation methods difficult and energy-intensive.
Researchers from the Helmholtz-Zentrum Dresden-Rossendorf (HZDR) and their collaborators decided to try a completely different approach based on quantum physics.
Their material of choice was a zeolite, a porous mineral made of aluminum, silicon, and oxygen atoms. Zeolites contain millions of tiny pores that can trap molecules. For this study, the researchers replaced the material’s usual sodium ions with silver ions, creating a surface with unique properties.
When hydrogen molecules enter these microscopic pores, they interact with the silver ions. Because protium, deuterium, and tritium have different masses, quantum mechanics causes each isotope to bind to the silver with a different strength. Tritium sticks the strongest, deuterium binds less strongly, and ordinary hydrogen barely sticks at all.
This difference allows the isotopes to be separated simply by heating the material. As the temperature rises, ordinary hydrogen is released first, followed by deuterium and finally tritium.

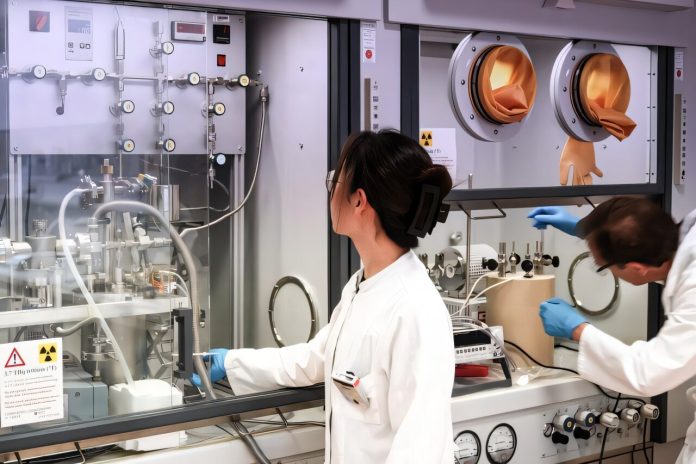

The team tested this process using radioactive tritium in a specialized radiochemical laboratory in Germany. It is the first time researchers have successfully separated a mixture containing all three hydrogen isotopes using a porous solid material.
The results were impressive. After passing through the silver-containing zeolite, the mixture became highly enriched in tritium, showing that the material strongly preferred holding onto the heavier isotope.
The researchers were also encouraged to find that the material remained stable despite exposure to radioactive tritium. Although tritium gives off radiation that could potentially damage the material, no measurable loss in performance was observed during the experiments.
While the technology is still in the early stages, the findings represent an important step toward building practical fusion fuel recycling systems. Much more work is needed before the method can be used in commercial fusion reactors, including testing larger amounts of material, improving long-term durability, and designing systems that can operate continuously.
The research team also plans to investigate other porous materials that may perform even better.
By understanding how quantum effects can separate nearly identical isotopes, scientists hope to develop more efficient fuel recycling technologies that could help make future fusion power plants a practical source of clean energy.
Source: KSR.
