As artificial intelligence continues to grow, today’s computer chips are struggling to keep up with the enormous amount of data they need to move.
One of the biggest challenges is that traditional electrical connections inside chips can only transfer information so quickly.
Scientists believe silicon photonics, which uses light instead of electricity to send data, could be a major part of the solution.
A new study published in the Journal of Lightwave Technology highlights an emerging manufacturing method called micro-transfer printing (MTP) that could help silicon photonics reach its full potential by combining different advanced materials on a single chip.
Silicon photonics works by sending information as photons, or particles of light, instead of electrons.
Because light can carry much more data at higher speeds with lower energy use, this technology has become increasingly important for telecommunications, data centers, and the massive computing systems that power AI.
One of silicon photonics’ biggest advantages is that it can be manufactured using the same CMOS technology already used to produce billions of computer chips. This makes it easier and less expensive to manufacture at large scale.
However, silicon also has important limitations. While it is excellent for guiding light, it is not very good at producing it. Some key functions needed for advanced photonic chips, such as creating laser light or rapidly controlling optical signals, require materials that are not normally used in standard chip manufacturing.
Researchers have therefore been searching for ways to combine silicon with other high-performance materials, including indium phosphide, gallium arsenide, and lithium niobate. These materials each offer unique optical properties that can greatly expand what silicon photonic chips can do.
According to researchers from Ghent University and imec in Belgium, micro-transfer printing offers a promising solution.

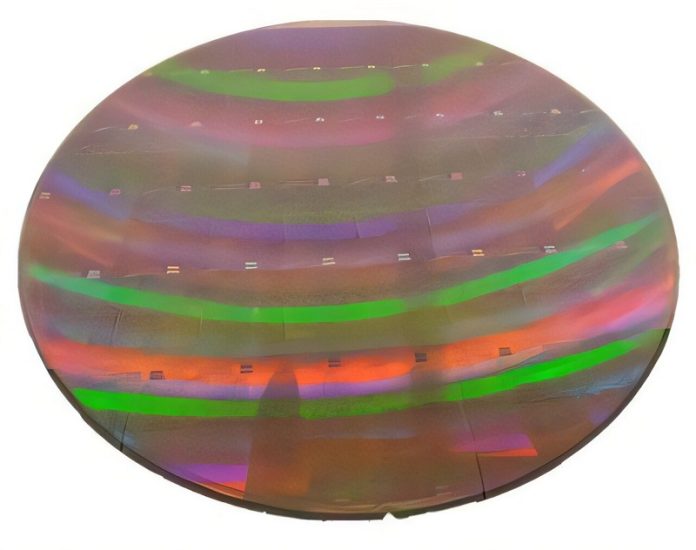

The process begins by manufacturing tiny, ultra-thin devices known as “coupons” on separate source wafers. These miniature components are then carefully lifted using a soft rubber-like stamp and precisely placed onto a silicon photonics wafer. After printing, the components are permanently attached, allowing several different materials to work together on a single chip.
Unlike many existing manufacturing techniques, micro-transfer printing is highly flexible because each tiny component can be produced using the manufacturing process best suited for its own material before being combined with the silicon chip.
Researchers have already demonstrated several impressive applications using this approach. These include silicon photonic engines that combine optical and microwave signal processing, gallium arsenide lasers integrated with silicon nitride circuits for virtual reality and quantum technologies, widely tunable indium phosphide lasers for high-speed communications and LiDAR systems, lithium niobate modulators integrated into photonic circuits, and advanced electronic-photonic optical receivers.
The study also describes a new pilot manufacturing line designed to help prepare micro-transfer printing for large-scale commercial production.
Although the technology has made significant progress, important challenges remain before it can be widely adopted. Researchers still need to improve manufacturing yield, reliability, production speed, and build a scalable industrial ecosystem capable of supporting mass production.
Despite these hurdles, the researchers are optimistic. They believe continued improvements in micro-transfer printing will eventually allow manufacturers to produce highly advanced silicon photonic chips on an industrial scale.
If successful, the technology could support faster AI systems, more efficient data centers, next-generation telecommunications, quantum computing, virtual reality, autonomous vehicles, and many other applications that rely on moving enormous amounts of data quickly and efficiently.
