Lithium-sulfur batteries have long been seen as one of the most promising technologies for the future of energy storage.
They could store much more energy than today’s lithium-ion batteries while using sulfur, a material that is inexpensive and widely available.
However, one major problem has prevented these batteries from becoming widely used.
Now, researchers from Tohoku University have developed a new material that could help solve this challenge and move lithium-sulfur batteries closer to everyday use.
The study, published in the journal Small, introduces a specially designed layer made from a covalent organic framework (COF) combined with graphene.
This new layer helps keep the battery working efficiently for much longer.
Lithium-sulfur batteries produce electricity through a series of chemical reactions. As the battery is used, sulfur changes into several different forms before returning to its original state during charging.
This process allows lithium-sulfur batteries to store much more energy than the batteries found in most phones, laptops, and electric vehicles today.
Unfortunately, one of the sulfur compounds formed during these reactions can dissolve into the battery’s liquid electrolyte. These dissolved particles, called lithium polysulfides, can drift to other parts of the battery where they do not belong.
This unwanted movement causes side reactions, reduces the amount of usable sulfur, lowers battery capacity, and shortens the battery’s lifespan. Scientists call this the “polysulfide shuttle” problem, and it has been one of the biggest obstacles to developing practical lithium-sulfur batteries.

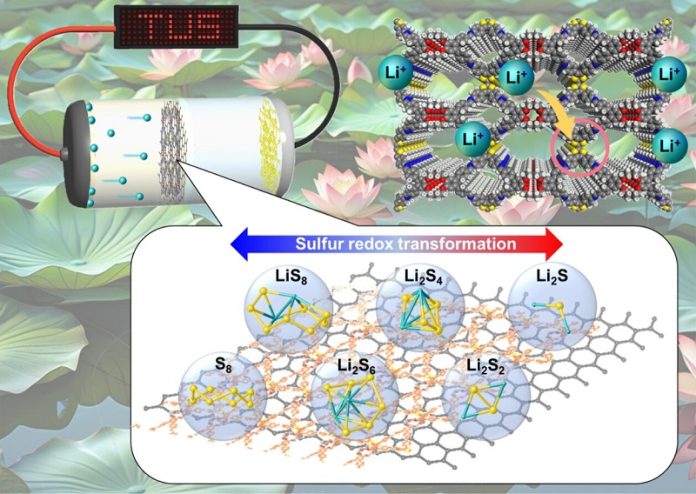

Instead of simply trying to block these particles, the research team created a material that can capture them, guide them, and help them continue the normal chemical reactions inside the battery.
The new material combines two advanced components. The first is a covalent organic framework, or COF. A COF is a lightweight material built from carefully arranged molecules that form tiny, regular pores.
Because scientists can precisely control its structure, they can design it to interact with specific chemicals inside the battery. The second component is graphene, a form of carbon that is an excellent conductor of electricity. Together, the two materials create a thin layer that both traps unwanted sulfur compounds and allows electricity to flow quickly.
Laboratory tests showed impressive results. Batteries using the new layer delivered high energy storage, maintained strong performance even when charged and discharged quickly, and continued working reliably after 1,000 charging cycles. The researchers also built a larger pouch-cell battery using the same technology, demonstrating that the approach could work in practical battery designs.
The team discovered that different parts of the new material each play an important role. Some parts attract lithium ions, others help move them through the battery, while other sections speed up the chemical reactions needed for charging and discharging. Rather than acting as a simple filter, the new layer actively manages the battery’s chemistry.
The researchers say this work shows how materials can now be designed at the molecular level to improve battery performance. If future testing continues to be successful, this technology could help create lighter, longer-lasting batteries with much higher energy storage.
Such batteries could one day power electric vehicles that travel farther, portable electronics that last longer between charges, and renewable energy systems that store more electricity efficiently.
