Engineers at Penn State have created a new type of paint-on electronic tattoo that combines art with advanced health technology.
The colorful, washable conductive ink can be painted directly onto the skin in almost any design while serving as a highly accurate sensor for monitoring the body’s electrical signals.
The research, published in the Proceedings of the National Academy of Sciences, could lead to more comfortable wearable health devices that help detect heart problems, monitor brain activity, control robotic prosthetic hands and eventually measure important health markers such as glucose or cortisol.
Most wearable health devices rely on electrodes attached to the skin. These electrodes detect tiny electrical signals generated by the heart, muscles and brain.
Doctors use these signals to produce electrocardiograms (ECGs) to monitor heart activity, electroencephalograms (EEGs) to study brain activity and electromyograms (EMGs) to measure muscle movement.
Traditional electrodes are often made from rigid metal materials that do not move well with the body. They can become uncomfortable, loosen during exercise and provide less accurate readings.
Other newer designs use soft hydrogel materials that stick better to the skin but gradually dry out, reducing their performance over time.
The Penn State team took a different approach by developing a water-based conductive ink that can be painted directly onto the skin like face paint.
Once applied, the ink dries in less than 10 minutes, although a hair dryer can speed up the process. Because the ink molds itself to the skin’s natural texture, it forms a closer connection than conventional electrodes, improving signal quality.

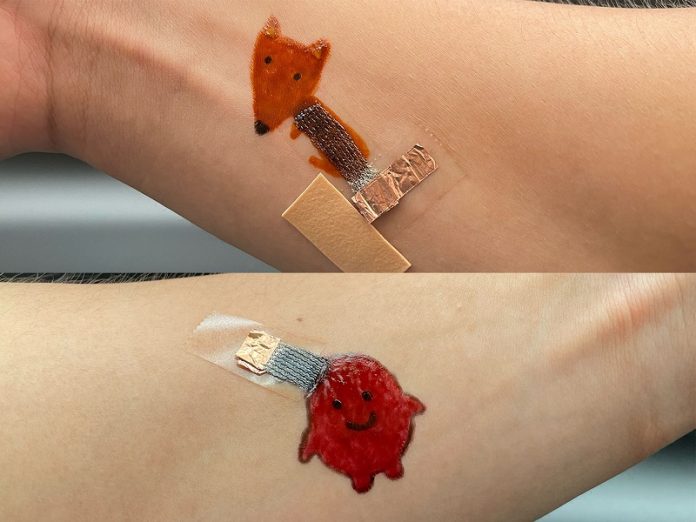

The ink can also be mixed with food coloring, allowing users to create almost any color or design they like. Instead of wearing plain medical patches, people could paint cartoon characters, animals, logos or other personalized artwork while the designs quietly monitor their health.
To make the system both flexible and durable, the researchers connected the painted electrodes to a lightweight silver fabric with a porous structure. The wet ink flows into the fabric before drying, creating a strong bond.
The fabric can stretch to more than one and a half times its original length without breaking while allowing sweat and even body hair to pass through, making the sensors more comfortable and helping maintain reliable electrical contact.
The painted electrodes connect to a small reusable electronic module worn under clothing. This module collects the electrical signals and wirelessly sends them to a computer or other device using Bluetooth.
The researchers tested the technology in several real-world situations. In one experiment, volunteers wore the painted electrodes for 12 hours during normal daily activities, and the system continuously recorded high-quality ECG readings. In another test, the electrodes maintained their accuracy even during exercise, despite movement and sweating.
The team also demonstrated that muscle signals detected by the painted electrodes could control a robotic prosthetic hand without requiring any physical contact, highlighting the technology’s potential for advanced rehabilitation and assistive devices.
Although the electronic module is designed for repeated use, the painted electrodes themselves can simply be washed off and reapplied whenever needed. A single bottle of conductive ink could produce many wearable sensors over several days or even a week.
Looking ahead, the researchers hope to expand the technology beyond monitoring electrical signals. Future versions may detect important biological chemicals such as cortisol, a stress hormone, or glucose for diabetes management.
They are also exploring unusual applications, including painting sensors onto plants to monitor environmental conditions and study how pollution or chemicals affect plant health.
The new paint-on system offers a glimpse of a future where wearable medical devices are not only more accurate and comfortable but also colorful, personalized and easy to use.
