A team of researchers at Kyoto University has developed a new graphite-based material that can float steadily above magnets, opening the door to highly sensitive sensors capable of detecting tiny movements and vibrations.
The discovery could eventually contribute to new sensing technologies and improve techniques used in magnetic resonance research.
The study, published in Analysis & Sensing, focuses on a property known as diamagnetism. Diamagnetic materials are naturally repelled by magnetic fields.
Although this force is usually very weak, powerful magnets can generate enough repulsion to overcome gravity, causing certain materials to levitate.
Graphite, the same material found in pencil lead, is one of the best naturally occurring diamagnetic materials.
Because of this, scientists have long been interested in using levitating graphite in precision sensors that can detect extremely small disturbances in the environment.
However, graphite has one major drawback: it conducts electricity. When graphite moves through a magnetic field, electric currents are generated inside the material. These currents interfere with the magnetic forces that allow stable levitation, making the material less suitable for sensitive applications.
Previous attempts to solve this problem involved coating graphite particles with a thin layer of glass. The glass successfully blocked the unwanted electrical currents, but it introduced another problem. The tiny graphite particles ended up pointing in random directions, reducing the material’s overall magnetic lifting force.
The Kyoto University team found a way to overcome both challenges at the same time.
The researchers specialize in nuclear magnetic resonance spectroscopy, a technique widely used to study materials and molecules. While working on methods for aligning microscopic crystals, they realized their expertise could also solve the graphite levitation problem.

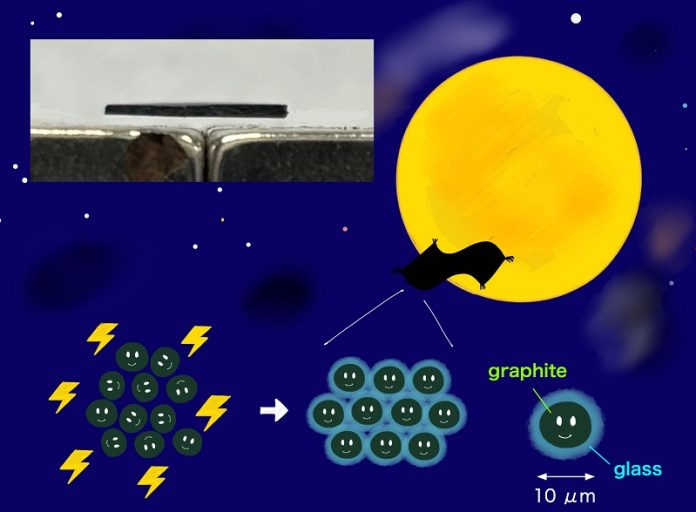

First, they coated each tiny graphite particle with a very thin layer of glass, preventing electricity from flowing through the particles. They then mixed the coated particles with water to create a thick slurry. The mixture was placed inside a powerful superconducting magnet while the container rotated at a carefully controlled speed.
The combination of the magnetic field, the spinning motion, and the thickness of the slurry caused the graphite particles to line up in the same direction. Once the water dried, the result was a solid plate made of electrically insulated graphite particles that were all neatly aligned.
When the researchers placed the finished material above permanent magnets, it levitated stably. Because the glass coating suppressed the electrical currents that normally interfere with the magnetic forces, the floating plate continued to gently oscillate for a long time. The researchers said its smooth motion resembled a miniature flying carpet.
The team believes the new material could become a valuable platform for highly sensitive sensors. During one experiment, they accidentally demonstrated its potential when an earthquake struck while they were recording the plate’s movement. The levitating material immediately responded by bobbing up and down, producing a clear signal that captured the seismic disturbance.
The researchers now hope to explore applications in sensing technologies as well as in nuclear magnetic resonance and magnetic resonance imaging (MRI).
While more work is needed before practical devices are developed, the study shows that carefully aligning insulated graphite particles can create a stable levitating material capable of detecting extremely small movements, potentially leading to a new generation of ultra-sensitive scientific instruments.
