As demand for electricity continues to rise because of data centers, electric vehicles, and renewable energy, the world’s aging power grid is facing increasing pressure.
One of the biggest concerns is the reliability of power transformers, the large devices that help move electricity around the grid.
Now, an international team of researchers has developed a new wood-based material that could make transformers more reliable, longer-lasting, and more efficient.
The scientists, led by researchers at Yale University, created an advanced insulation material made from specially treated wood.
They believe it could help modernize the power grid and reduce costly transformer failures.
Insulation is a critical part of a transformer. It keeps electricity flowing safely and prevents electrical breakdowns inside the equipment.
However, insulation failure is one of the most common reasons transformers stop working. These failures cost consumers billions of dollars every year and can lead to long power outages and safety risks.
Most large transformers in the United States are more than 25 years old and typically last only around 30 years. Many still use an insulation system that dates back to the late 1800s. This traditional material consists of paper made from cellulose fibers that is soaked in insulating oil.
Although this design has worked for decades, it has several weaknesses. The oil allows electrical breakdowns to spread more easily, and the material does not handle physical stress or heat particularly well. Higher temperatures also cause the insulation to deteriorate more quickly.
The research team took a completely different approach.
Instead of using conventional paper, the scientists started with thin sheets of natural wood. They removed some of the wood’s natural compounds and then soaked it in insulating oil. Finally, they compressed the material, making it much denser.

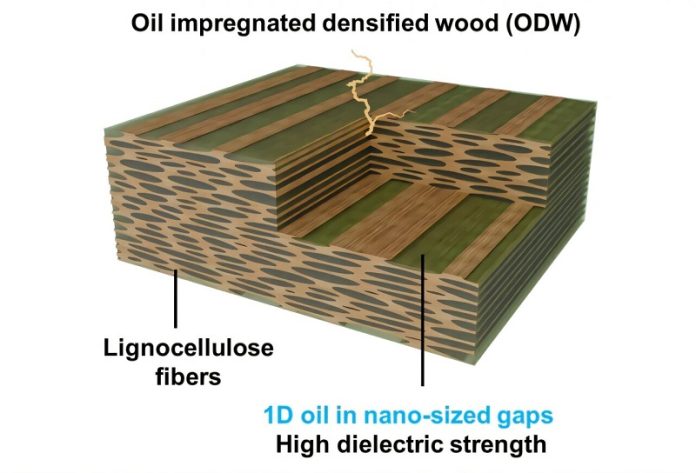

The result is a new material called oil-impregnated densified wood, or ODW.
The treatment changes the wood’s internal structure. Tiny oil-filled channels inside the wood become much smaller and are separated by dense walls of cellulose. Because the oil is trapped in these isolated nanoscale channels, electrical failures cannot spread easily through the material.
The new material also performs well in other important areas. It is about 3.5 times stronger than conventional transformer insulation paper and conducts heat about 1.6 times better. These improvements are important because transformers experience both physical stress and high temperatures during operation.
In laboratory tests, the researchers heated the material to 150 degrees Celsius for six weeks. Even after this harsh treatment, the material retained more than 70% of its strength, remaining stronger than traditional insulation materials at the start of testing.
The team also built a small transformer using the new material. During operation, it ran about 10 degrees Celsius cooler than a similar transformer insulated with conventional plastic, thanks to its improved ability to remove heat.
The researchers say the material can be manufactured on a large scale using different types of wood, making it practical and environmentally friendly. Beyond power transformers, the technology could eventually be used in electric motors, dry-type transformers, and electronic devices.
As the world’s need for electricity keeps growing, this nanoengineered wood may offer a surprisingly simple way to build a stronger and more dependable power grid.
