Concrete is the most widely used building material in the world. It is strong when supporting heavy weight, but it can crack when it is pulled or bent.
To solve this problem, engineers developed a special material called ultra-high-performance concrete (UHPC).
This type of concrete is much stronger, lasts much longer, and is better at resisting cracks than ordinary concrete.
UHPC is already used in important projects such as bridges, high-rise buildings, and coastal flood protection. It also plays an important role in modern bridge construction.
Instead of building an entire bridge on-site, workers can make large bridge sections in a factory, transport them to the construction site, and connect them together.
UHPC acts like a powerful glue that holds these pieces firmly in place, helping projects finish much faster.
However, there is one major problem. UHPC can cost up to 30 times more than traditional concrete. The biggest reason is the tiny steel fibers mixed into the material. These fibers make up only about 2% of the concrete’s volume, but they account for around 70% of its total cost.
Now, researchers at Penn State have found a promising way to lower the price while keeping UHPC just as strong and durable.
The research team created 15 different versions of UHPC using different types, sizes, and amounts of reinforcing fibers.
Some mixtures used steel fibers with different shapes, including twisted fibers and fibers with tiny hooks that helped them grip the concrete more firmly. Other mixtures tested nonmetallic materials such as glass fibers, basalt fibers, and fiber-reinforced polymers.

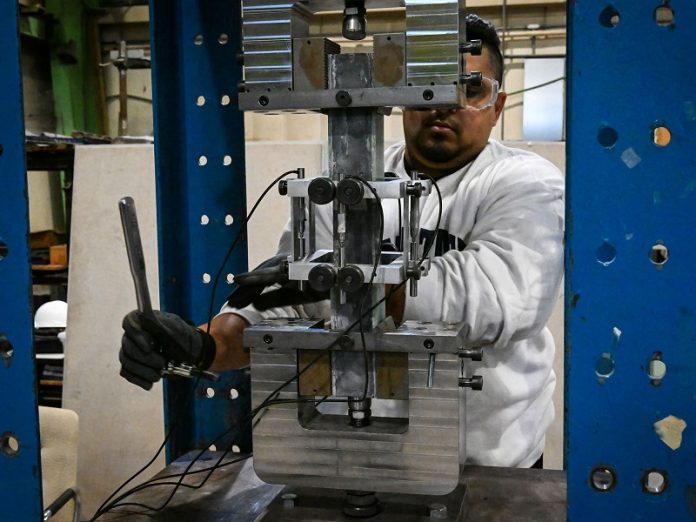

The researchers then carried out a series of tests to measure how well each mixture performed. They examined how easily the concrete flowed before hardening, how much pressure it could handle, how well it resisted pulling forces, how flexible it was before cracking, and how strongly the fibers stayed attached inside the concrete.
The results were encouraging. Two types of steel fibers, called microsteel and striated steel fibers, delivered nearly the same performance even when the amount of fiber was reduced by half. This finding suggests that manufacturers could significantly reduce material costs without sacrificing strength.
The study also found that longer, thinner fibers improved the concrete’s resistance to cracking. Another important discovery was that fibers should slowly pull out of the concrete under heavy stress instead of breaking suddenly. This helps the material absorb more energy and prevents sudden failure.
Although today’s nonmetallic fibers are still not as effective as steel, the researchers believe better designs could eventually provide similar performance at a much lower price.
Based on these findings, the team developed a new design approach that could reduce the cost of UHPC by as much as 75%. At the same time, it could lower carbon emissions because producing steel fibers is energy-intensive.
The researchers hope their work will make UHPC more affordable for builders around the world.
By reducing costs and environmental impact while maintaining outstanding strength, this new approach could help create safer, longer-lasting bridges, buildings, and other important infrastructure in the future.
