Making computer chips smaller and more powerful is not just about clever engineering.
It also depends on improving the manufacturing process used to build the tiny circuits inside electronic devices.
These circuits are carved into materials at the nanoscale, meaning they are thousands of times thinner than a human hair.
This delicate process is called patterning, and it is essential for producing the chips used in smartphones, computers, sensors, and many other technologies.
One key part of this process is the use of something called a hard mask.
A hard mask is a thin protective layer placed on top of a material before engineers begin carving patterns into it.
The mask protects certain areas while other exposed areas are etched away using extremely reactive chemicals. Once the pattern is created, the mask can be removed, leaving behind the tiny structures that form the chip’s circuits.
However, as chips become smaller and more complex, this step is becoming increasingly difficult.
According to Saptarshi Das, a professor of engineering science and mechanics at Penn State, the materials used as hard masks must survive extremely harsh manufacturing conditions.
During chip fabrication, engineers often use plasma etching, a process that relies on highly reactive gases to carve deep and narrow structures into silicon.
These conditions can slowly damage or wear down traditional mask materials, making it harder to produce precise patterns.
In a new study published in Nature Materials, Das and an international team of researchers report a possible solution.
They discovered that an atomically thin material called chromium oxychloride could work far better than the materials currently used as hard masks.
Chromium oxychloride belongs to a class of materials known as two-dimensional, or 2D, materials. These materials are made of extremely thin layers stacked on top of each other.
One of the researchers compared the structure to a lasagna, where each layer sits loosely on top of the next. This layered design turns out to be very useful during plasma etching.

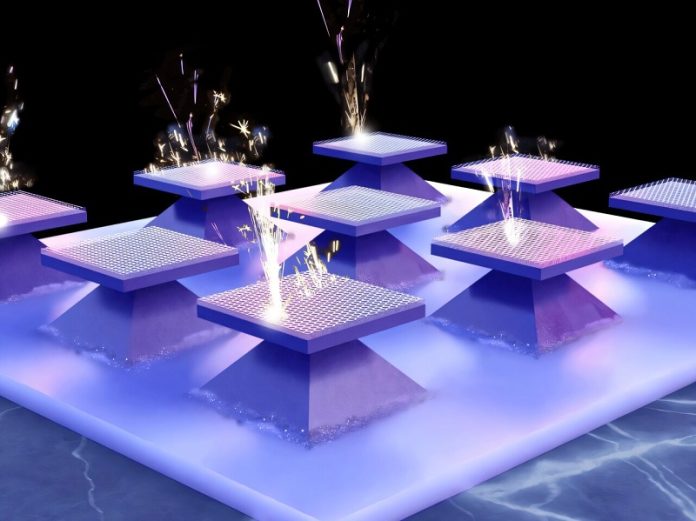

When the material is exposed to plasma, its surface forms a protective layer that becomes chemically stable. This layer shields the material underneath from further damage, allowing the mask to survive much longer than traditional materials.
The research team found that chromium oxychloride is highly resistant to fluorine plasma, a very reactive gas commonly used in chip manufacturing. Because the material erodes more slowly, it can function effectively even when it is extremely thin. This allows engineers to carve deeper and more precise patterns while still protecting the underlying material.
The scientists also discovered another surprising benefit. Instead of becoming rough after repeated plasma exposure, the material’s surface actually became smoother. This helps produce cleaner and sharper features in the final chip structures, which is important for advanced three-dimensional chip designs where layers must align with extreme precision.
Another advantage is that the mask can be created on one surface and then transferred onto other materials, such as flexible plastics or glass. This could make it easier to manufacture flexible electronics or specialized sensors.
So far, the experiments have been carried out on very small pieces of the material. Before it can be used in industry, scientists will need to develop methods to grow the material evenly across entire silicon wafers used in chip factories. Even so, researchers believe this discovery could play an important role in the future of electronics manufacturing.
Source: Penn State.
