Scientists have made an exciting breakthrough in the field of photonics by developing innovative perovskite crystals that can be used in advanced optical devices.
These crystals have the potential to revolutionize both classical and quantum computing by enabling more efficient signal processing at room temperature.
A team of researchers from the University of Warsaw, in collaboration with institutions from Poland, Italy, Iceland, and Australia, has successfully created perovskite crystals with precise shapes that can serve as waveguides, couplers, splitters, and modulators in optical systems.
Their findings were published in the journal Nature Materials.
Perovskites are a type of material known for their versatility and wide range of applications, from solar cells to lasers.
The specific material used in this study, cesium-lead-bromide (CsPbBr3), is an ideal semiconductor for optical applications due to its strong ability to interact with light.
This interaction allows for the efficient amplification of light, making it an excellent choice for creating nonlinear optical effects.
The research team, led by Professor Barbara Piętka from the University of Warsaw, used a special technique to grow perovskite crystals with predefined shapes. They employed a microfluidic method, where the crystals are formed in narrow polymer molds that can be shaped in any desired form. This method is repeatable and scalable, meaning it can be used to produce large quantities of high-quality crystals with consistent properties.
One of the key achievements of this research was the ability to control the growth of the crystals by adjusting the concentration of the solution and the temperature. The team also used advanced techniques, such as electron-beam lithography and plasma etching, to create smooth and precise templates for the crystals to grow on. This resulted in high-quality single crystals that can be shaped into anything from simple corners to smooth curves.
These perovskite crystals have unique properties that allow them to be used in photonic devices. For example, they can form natural resonators for light on their surfaces, which can produce strong nonlinear effects without the need for additional components like Bragg mirrors. This makes them particularly promising for use in integrated photonic circuits, where all the components are combined on a single chip.

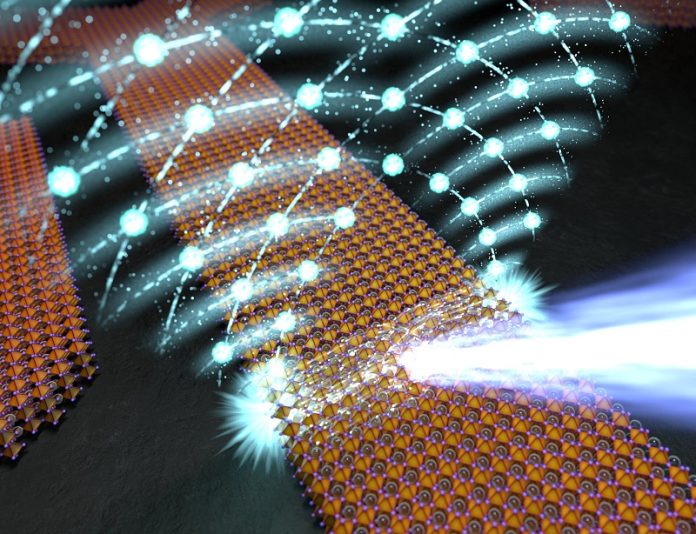

One of the most exciting discoveries from this research was the observation of a phenomenon known as edge lasing. This occurs when light is emitted from the edges and corners of the crystals due to strong interactions between light and matter. The researchers found that this light emission is caused by the formation of a Bose-Einstein condensate of exciton-polaritons, which are particles that behave like both light and matter.
The team’s simulations and experiments showed that these crystals could be used to create compact “on-chip” systems capable of handling both classical and quantum computing tasks. The emitted light from these perovskite structures can travel long distances within the crystals and can even propagate through air gaps to neighboring structures.
This breakthrough could pave the way for future devices that operate at the level of single photons, integrating nanolasers with waveguides and other elements on a single chip.
The researchers believe that their work will open new doors for the development of optical technologies, especially those that operate at room temperature.
Moreover, the compatibility of these perovskite structures with existing silicon technology could make them highly commercially viable, further advancing the field of photonics.
