Revolutionary skin-like material boosts wearable devices’ signal strength

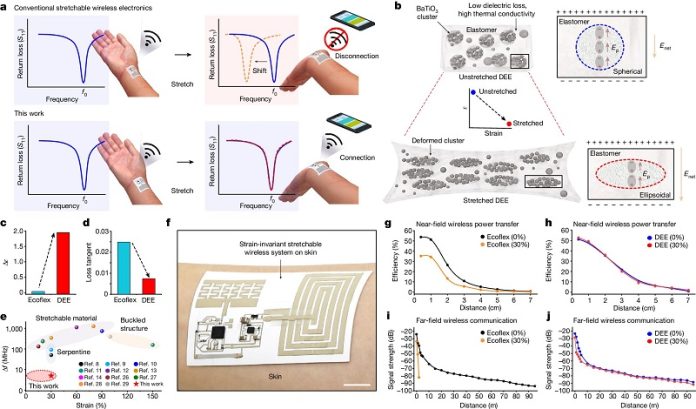

Strain-invariant stretchable wireless system enabled by dielectro-elastic composite. Credit: Nature (2024).

Imagine wearable devices that not only move with your skin but also maintain strong, reliable signals without needing a battery.

Researchers from Rice University and Hanyang University have developed an innovative material that does just that, paving the way for the next generation of wearable technology.

This breakthrough, recently published in Nature, shows how these devices can achieve continuous and consistent wireless functionality.

The team, led by Raudel Avila from Rice University and Sun Hong Kim from Hanyang University, created a material that embeds highly dielectric ceramic nanoparticles into an elastic polymer.

This material mimics the elasticity and movement of skin while stabilizing the electrical signals needed for wireless communication.

Avila explained that wearable devices often use radio frequency (RF) elements, like antennas, to send and receive signals.

However, when these devices move or stretch, it can cause the frequency to change, leading to weak or disrupted signals.

To address this, the researchers designed their new material to adjust its dielectric properties and counteract these disruptions, ensuring stable communication even when the device is in motion.

The nanoparticles within the material are crucial to its function. Their specific distribution and clustering patterns help maintain the stability of the electrical properties and resonant frequency of the RF components.

This means that as the material stretches and bends, it keeps the signal strong and stable.

To test their material, the researchers created several stretchable wireless devices, including an antenna, a coil, and a transmission line.

They compared these devices’ performance on their new material to that on a standard elastomer without the added nanoparticles. The results were impressive: the devices on the new material maintained stable wireless communication at distances up to 30 meters (about 98 feet), even under strain.

In contrast, devices on the standard substrate lost connectivity entirely when stretched.

This new material could have wide-ranging applications in wearable technology, from medical devices to soft robotics and lightweight, high-performance antennas.

Wearable technologies are already transforming healthcare, enabling new forms of monitoring, diagnosis, and care. This innovation could enhance these capabilities even further.

For instance, the researchers developed wearable bands that can be worn on various body parts, such as the head, knee, arm, or wrist.

These bands can monitor health data, including brain activity, muscle activity, knee motion, and body temperature.

The headband they created could stretch up to 30% on a toddler’s head and up to 50% on an adult’s head, transmitting real-time brain activity data at a distance of 30 meters.

Avila emphasized the importance of designing wearable electronics that can seamlessly conform to the skin’s shape and monitor physiological signals without disrupting the user’s experience. As wearable technology continues to evolve, the development of highly efficient, stretchable electronics is crucial for maintaining stable wireless connectivity.

This new material represents a significant step forward in wearable technology. By combining skin-like flexibility with robust signal strength, it opens up new possibilities for the design and use of wearable devices.

Whether in healthcare, robotics, or everyday consumer electronics, this innovation could lead to more reliable and effective wearable technology, enhancing how we interact with our devices and, ultimately, improving our lives.

Source: Rice University.
