Imagine the world of electronics like a puzzle.
Every piece has its own unique shape and function. One of the critical pieces in this vast tech puzzle is a thing called ‘semiconductor thin films’.
They’re like the wallpaper for some of our favorite devices, making them work in cool ways.
Recently, a group of brainy researchers in Germany came up with a brand-new method to craft these ‘electronic wallpapers’ even better than before.
And guess what? This new approach could reshape how we make and use gadgets in the future!
So, what are these ‘semiconductor thin films’ we’re talking about?
Think of them as super-thin sheets that can conduct electricity. They’re a big deal because they’re in many things we use daily—like solar panels, sensors, and even some advanced transistors.
These films are made using special materials known as ‘organic semiconductors’. The word ‘organic’ here means they’re based on carbon, a very common element found in almost everything, including you and me!
Now, why is this new method so exciting? It’s because it lets scientists customize these thin films like never before. It’s like going from black and white television to full-color, high-definition TV!
This new process, crafted by a team led by the Leibniz Institute of Photonic Technology in Germany, offers more control over the film’s structure and its electronic properties.
Here’s an easy way to imagine it: Let’s say you’re baking a layered cake. Wouldn’t it be awesome if you could decide the exact thickness of each layer, the flavor, and even the texture?
That’s what this new method does for these electronic wallpapers. It lets experts pick and choose how they want the film to be, layer by layer.

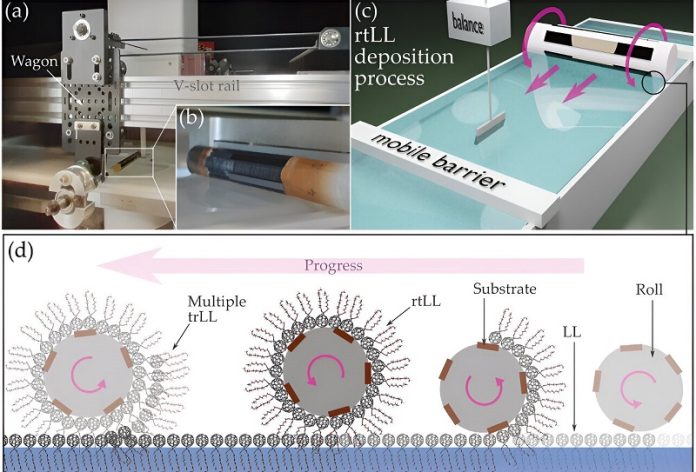

And the way they do it? It’s fascinating. They use a technique called the “rolling transferred Langmuir layer technique”. This big name simply means they take a layer of special molecules floating on water and then roll it onto a solid surface, transferring the layer neatly. It’s like using a rolling pin to transfer a sheet of cookie dough onto a baking tray, but way more high-tech!
Dr. Martin Presselt, one of the head researchers, mentioned that their method even lets them make crystal-like films which were super tricky to make before.
In the past, trying to make these films was like trying to spread cold butter on toast; you’d end up breaking the bread or getting uneven spread. But with this new approach, they can spread that ‘butter’ smoothly every single time.
A researcher named Dr. Sarah Jasmin Finkelmeyer, who was super involved in this project, said there are two main things they can control.
First, they can decide how tightly the molecules are packed in each layer (imagine choosing between thick or thin peanut butter spread). Second, they can choose the number of layers, controlling the overall thickness (like deciding between a two-layer cake or a five-layer one).
Now, you might be thinking, “This all sounds cool, but why should I care?” The answer is simple: better gadgets and a better planet!
With this technology, we could get solar panels that harness sunlight more efficiently, turning it into electricity. Or, imagine super-thin films that can change sunlight into other forms of energy. The possibilities are vast.
In a nutshell, the next time you see a shiny new gadget or marvel at a solar panel, remember the magic of tailor-made semiconductor thin films.
They’re the unsung heroes behind the scenes, making our tech world brighter and more exciting!
