This artificial skin could give robots a sense of touch like humans

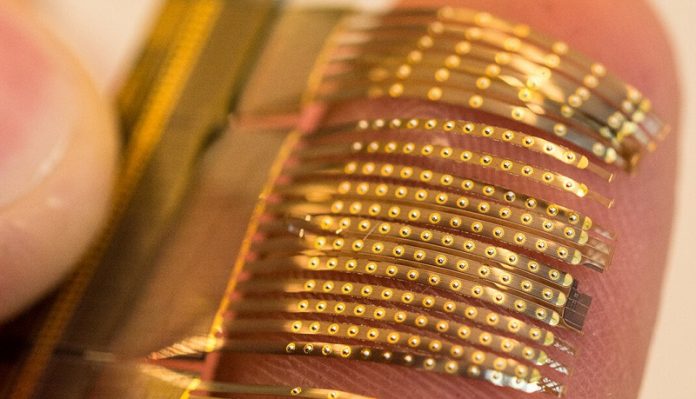

The pliable skin can be mounted onto any surface. Clearly visible are the tiny beads that exert pressure on the sensing membrane. Credit: ETH Zurich / Johannes Weichart.

One of many special human qualities is the ability to handle objects with skill and precision.

This is all down to our sense of touch, which is particularly acute in the tips of our fingers.

Using our hands, we are able to explore the shape and composition of objects and to feel the texture of their surface—and all without ever clapping eyes on them.

Our sense of touch is incredibly refined. Just try and get a robot to achieve a similar degree of nuance.

Production robots, for example, are able to pick up and move objects with impressive dexterity.

To do so, however, they first need to know where the object is—or they require additional visual information to help with orientation.

Ideally, too, they need to know how sturdy an object is, and its composition, before they grab it.

Hundreds of sensors

Johannes Weichart has an idea that could make robots much more adept at handling objects. Weichart, a doctoral student in the Micro- and Nanosystems (MNS) group at ETH Zurich, has developed an artificial skin that emulates the sense of touch in a human finger.

He believes that this can endow robots with the ability to touch and feel. What’s more, the artificial skin is pliable, which means it can be used to cover soft and unevenly formed materials—a robot gripper, for example, in the shape of a human finger.

In common with its human equivalent, Weichart’s artificial skin is equipped with a large array of receptors.

“You need around one sensor per square millimeter,” he explains. Each sensor comprises various layers. Two of these are a conductive membrane and subjacent electrodes, which springs hold apart at a distance of three to four micrometers.

Changes in the distance between them causes changes to an electrical signal captured by the electrodes.

Refined sense of touch

Connected to the conductive membrane is a small bead. When pressure is applied to the bead, the membrane deforms—and, with it, the signal measured by the sensor.

Half of the sensors are equipped with three electrodes rather than one. These measure not only the amount of force applied to the bead at any one point but also the angle of application. This gives the skin a much more nuanced sense of touch.

“It means you can feel the quality and texture of a surface and recognize when an object is slipping over the surface of the skin by sampling the sensors at high enough frequencies,” Weichart explains.

Too much raw data

Weichart has spent the first three years of his doctoral studies demonstrating that his idea functions in principle. The challenge now is to make the skin more robust and, crucially, suitable for concrete applications. This still requires some work.

“To be able to use the artificial skin in an everyday context, the sensors require a protective layer which we developed,” Weichart says. “And we also need to radically simplify the output signal. All that raw input data would overwhelm a robot. Besides, even humans don’t perceive the output of each individual receptor. We just register the overall impression.”

Despite the work ahead, the project is already looking promising. Little wonder, then, that Weichart was among the nominees for the Spark Award, which was presented last week.

Eyes on the prize

Staying focused may well be his biggest challenge over the coming months.

“I’m not obsessed with details,” he admits, “and I can quickly start chasing new ideas.

But that can soon get out of hand.” As it is, he already has plenty on his plate: microtechnology, electronics, precision mechanics, data processing, materials integration and AI pattern recognition—all of these fields will exercise his attention for some time to come.

Regular activity beyond the lab helps keep his eyes on the prize.

“I go biking and ski touring in the mountains, swimming in the lake in winter, and do boxing and mixed martial arts to help with my coordination and self-confidence,” he says. “That frees my head and helps me refocus on the job in hand.”

Written by Felix Würsten.
