Engineers from UNSW have helped discover a cheap new way to capture and convert CO2 greenhouse emissions using liquid metal.
The process can be done at room temperature and uses liquid gallium to convert the carbon dioxide into oxygen and a high-value solid carbon product that can later be used in batteries, or in construction, or aircraft manufacturing.
A team from the School of Chemical Engineering, led by Professor Kourosh Kalantar-Zadeh, worked in collaboration with researchers at University of California, Los Angeles (UCLA), North Carolina State University, RMIT, University of Melbourne, Queensland University of Technology, and the Australian Synchrotron (ANSTO).
Their findings have been published in the Advanced Materials journal and Professor Kalantar-Zadeh and his team say the new technology has the potential to be used in a wide variety of ways to significantly reduce the levels of greenhouse gases in the atmosphere.
“We see very strong industrial applications with regards to decarbonisation.
This technology offers an unprecedent process for capturing and converting CO2 at an exceptionally competitive cost,” said Junma Tang, the first author of the paper.
“The applications could be in cars to convert polluting exhaust gases, or even at a much larger scale at industrial sites where CO2 emissions could be immediately captured and processed using this technology.
“We have already scaled this system up to two-and-a-half liters dimensions, which can deal with around 0.1 liter of CO2 per minute. And we’ve tested that running continuously for a whole month and the efficiency of the system did not degrade.”

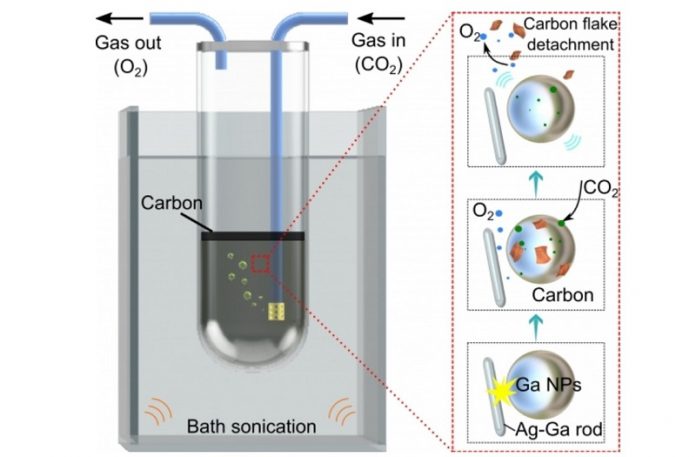

The newly discovered process dissolves captured CO2 gas into a solvent around nanoparticles of gallium, which exist in liquid state above 30°C.
The reactor also contains nano-sized solid silver rods that are the key to generating the triboelectrochemical reactions that take place once mechanical energy (e.g. stirring/mixing) is introduced.
A triboelectrochemical reaction occurs in solid–liquid interfaces due to friction between the two surfaces, with an electric field also created that sparks a chemical reaction.
The reactions break the carbon dioxide into oxygen gas, as well as carbonaceous sheets which ‘float’ to the surface of the container due to differences in density and can therefore be easily extracted.
In their paper, the research team show a 92 percent efficiency in converting a ton of CO2 as described, using just 230kWh of energy. They estimate this equates to a cost of around $100 per ton of CO2.
In order to commercialize the research, a spin-out company called LM Plus has been established with the support of UNSW’s Knowledge Exchange—a program that helps transform research discoveries into successful innovations to benefit society, along with seed investment from Uniseed.
Written by Neil Martin.
