Scientists invent world’s smallest high-performance magnetic tunnel junction

Credit: Butsurin Jinnai and Shunsuke Fukami.

A research group from Tohoku University led by current president Hideo Ohno has developed the world’s smallest (2.3 nm) high-performance magnetic tunnel junctions (MTJs).

This work is expected to accelerate the advancement of ultrahigh-density, low-power, high-performance non-volatile memory for a variety of applications, such as Internet of Things (IoT), AI, and automobiles.

The development of STT-MRAM–non-volatile spintronics memory–helps reduce the increasing power consumption in semiconductor device scaling.

Crucial to integrating STT-MRAM in advanced integrated circuits is scaling magnetic tunnel junction–a core component of STT-MRAM–while improving its performance in data retention and write operation.

Shape-anisotropy MTJ, proposed by the same group in 2018, has shown MTJ scaling down to single-digit nanometers while achieving sufficient data-retention (thermal-stability) properties.

In the shape-anisotropy MTJ, thermal stability is enhanced by making the ferromagnetic layer thick. Once the thickness goes beyond a certain point, however, device reliability becomes degraded.

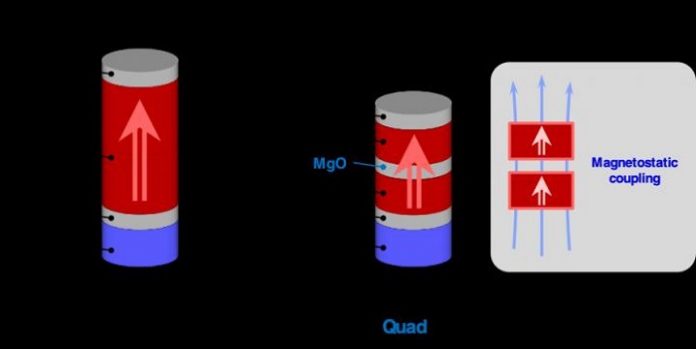

To address the issue in the conventional shape-anisotropy MTJ with a single ferromagnetic structure, the group employed a new structure that uses magnetostatically coupled multilayered ferromagnets.

The developed MTJs were successfully scaled down to 2.3 nm in diameter -the world’s smallest MTJ size.

They also exhibited high data retention properties up to 200°C and high-speed and low-voltage write operation down to 10 ns below 1 V at a single-digit-nanometer scale.

“The performance proves the developed MTJs’ capability to work with the future-generation advanced integrated circuits,” said Butsurin Jinnai, first author of the study. “Because of its material compatibility with the standard MTJ material system, CoFeB/MgO, the proposed MTJ structure can be easily adopted in existing MTJ technology.”

The group believes that this will speed up the development of ultrahigh-density, low-power, high-performance memory for a variety of applications, such as IoT, AI, and automobiles.
