UB engineers develop a dynamic gripper that mimics the adjustable grip of a human hand, an advancement that could improve industrial safety.
Human hands are remarkably skilled at manipulating a range of objects.
We can pick up an egg or a strawberry without smashing it. We can hammer a nail.

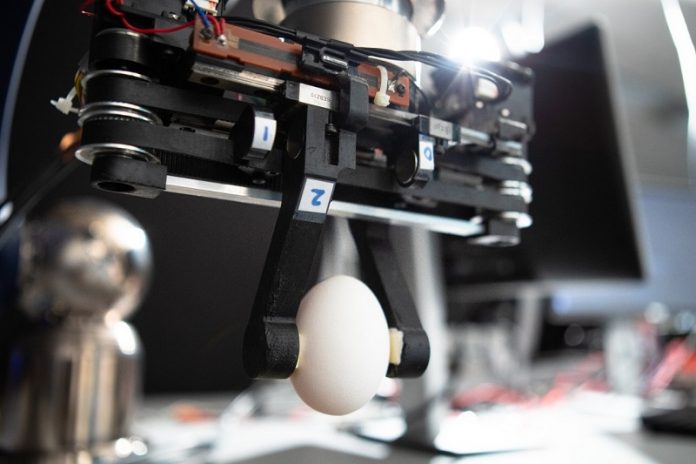

One characteristic that allows us to perform a variety of tasks is the ability to alter the firmness of our grip, and University at Buffalo engineers have developed a two-fingered robotic hand that shares this trait.
The design of the robotic hand enables it to absorb energy from impacts during collisions.
This prevents whatever the robot is holding from breaking, and also makes it safer for people to work with and near the machines.
Such grippers would be a valuable asset for human-robot partnership in assembly lines in the automotive, electronic packaging and other industries, says Ehsan Esfahani, PhD, associate professor of mechanical and aerospace engineering in the UB School of Engineering and Applied Sciences.
“Our robotic gripper mimics the human hand’s ability to adjust the stiffness of the grip.
These grippers are designed for collaborative robots that work together with people,” Esfahani says.
“They’re going to be helpers, so they need to be safe, and variable stiffness grippers help to achieve that goal.”
A new study published online on Sept. 10 in IEEE Transactions on Industrial Electronics highlights the device’s safe design, including through experiments showing how the gripper’s shock-absorbing features keep a spaghetti stick from breaking during a collision.
Magnets give this robot a soft touch
Esfahani explains that magnets are the secret behind the robotic gripper’s versatility.
Instead of having two fingers that are fixed in place, each of the gripper’s fingers has a magnetic base that sits between two neodymium magnets that repulse, or push against, the finger.
The air gap between the magnets acts like a spring, creating a little give when the hand picks up an object or collides with an external force. The stiffness of the grip can also be adjusted by increasing or decreasing the space between magnets.
In the new paper, Esfahani and Amirhossein Memar, a former UB Ph.D. candidate in mechanical and aerospace engineering, report on these safety features.
In one set of tests, the engineers placed a short stick of spaghetti lengthwise between the fingers of the robotic hand.
When the gripper crashed into a fixed object, the device detected the external force being applied, which caused the magnets to adjust their position, temporarily reducing the stiffness of the grip and allowing the gripper to absorb some of the energy from the collision.
The end result? The spaghetti stick stayed in one piece.
Next steps in development
Esfahani notes that the gripper his team is developing can be attached to commercially available robot arms that are already in use in many facilities.
This could lower the cost of adapting the technology for companies interested in improving the safety and capabilities of existing machines.
Esfahani is launching a startup company to commercialize the gripper, licensing technology from UB.
Written by Charlotte Hsu.
